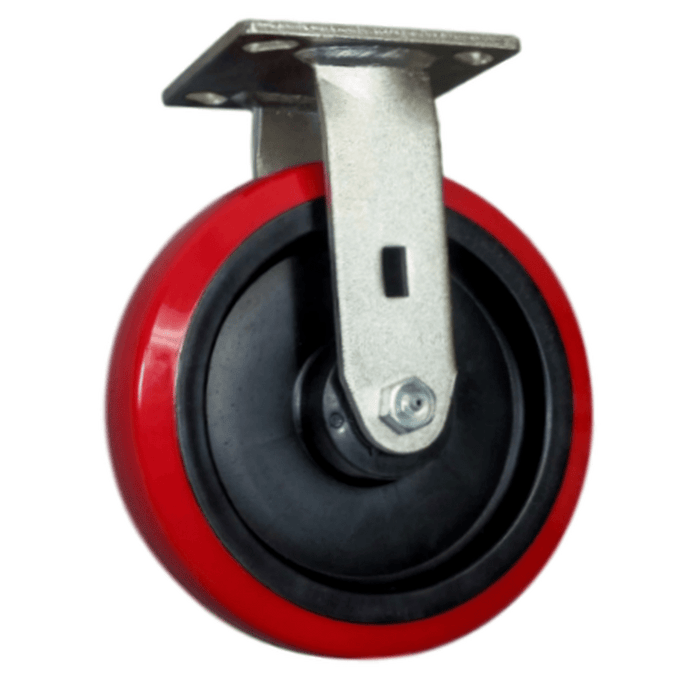

8" x 2" Poly-Pro Wheel Rigid Caster - 800 lbs. Capacity
8" x 2" Poly-Pro Wheel Rigid Caster - 800 lbs. Capacity
Product Overview
The poly-pro wheel is one of our caster staples, providing plenty of durability with a firm tread. The polyurethane tread protects surfaces, and the annular bearings roll very smoothly. These wheels work best for indoor applications; for outdoor use, please take a look at our Polymadic wheel casters with UV resistant materials.
Tread: Polyurethane, Non-Marking, Mechanically Locked To Core This caster is listed with wheel diameter 8", tread width 2", load capacity 800 lbs., tread type Polyurethane, Non-Marking, Mechanically Locked To Core, and bearing type Sealed Precision Bearing.
Key Features
- Load Capacity: 800 lbs.
- Wheel Diameter: 8"
- Tread Width: 2"
- Tread: Polyurethane, Non-Marking, Mechanically Locked To Core
- Bearing: Sealed Precision Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 800 lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Polyurethane, Non-Marking, Mechanically Locked To Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 800 lbs, the equipment requires a wheel other than 8" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 800 lbs. |
| Wheel Type | Non-marking polyurethane tread on polyolefin core. |
| Wheel Diameter | 8" |
| Tread Width | 2" |
| Tread Type | Polyurethane, Non-Marking, Mechanically Locked To Core |
| Core Type | Polyolefin |
| Bearing Type | Sealed Precision Bearing |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Overall Height | 9-1/2" |
| Swivel Radius | 6" |
| Wheel Color | Red/Black |
| Mounting Bolt Size | 3/8" |
| Model / MPN | 28PP80JK6017YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What bearing does it use?
The source lists Sealed Precision Bearing.
