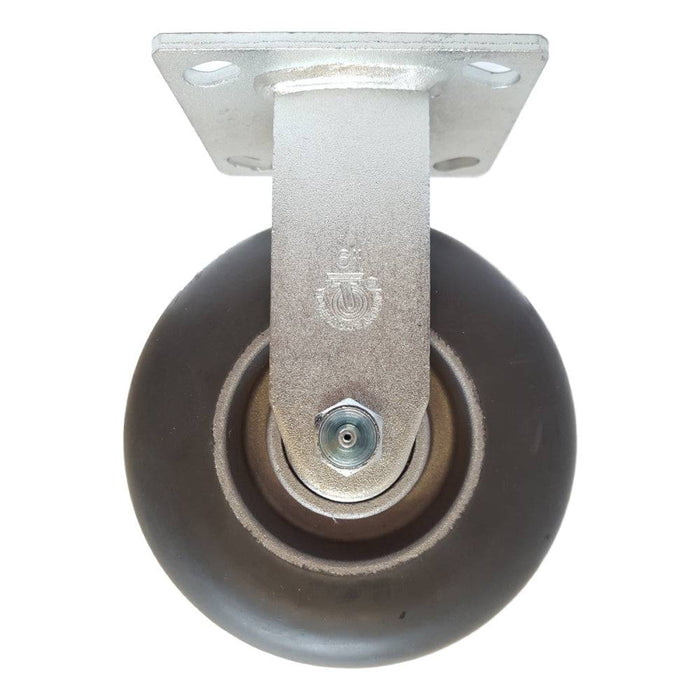

6" x 2" Dura Cushion Wheel Rigid Caster - 350 lbs. capacity
6" x 2" Dura Cushion Wheel Rigid Caster - 350 lbs. capacity
Product Overview
The Dura-Cushion wheel offers a soft, rounded balloon tread. The large width, soft polymer tread, and rounded shape make this wheel ideal for rolling over debris. The large width also provides a high load capacity for a cushioned wheel.
Tread: High Quality Rubber, Non-Marking, Chemically Bonded To Core This caster is listed with wheel diameter 6", tread width 2", load capacity 350 Lbs., tread type High Quality Rubber, Non-Marking, Chemically Bonded To Core, and bearing type Sealed Precision Bearing.
Key Features
- Load Capacity: 350 Lbs.
- Wheel Diameter: 6"
- Tread Width: 2"
- Tread: High Quality Rubber, Non-Marking, Chemically Bonded To Core
- Bearing: Sealed Precision Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 350 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed High Quality Rubber, Non-Marking, Chemically Bonded To Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 350 Lbs, the equipment requires a wheel other than 6" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 350 Lbs. |
| Wheel Diameter | 6" |
| Tread Width | 2" |
| Tread Type | High Quality Rubber, Non-Marking, Chemically Bonded To Core |
| Core Type | Aluminum |
| Bearing Type | Sealed Precision Bearing |
| Wheel Color | Black and Gray |
| Overall Height | 7-1/2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Durometer | 60 Shore A (+/-5) |
| Temperature Range | -40° F to 180° F |
| Model / MPN | 28BC60JX6317YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -40° F to 180° F.
