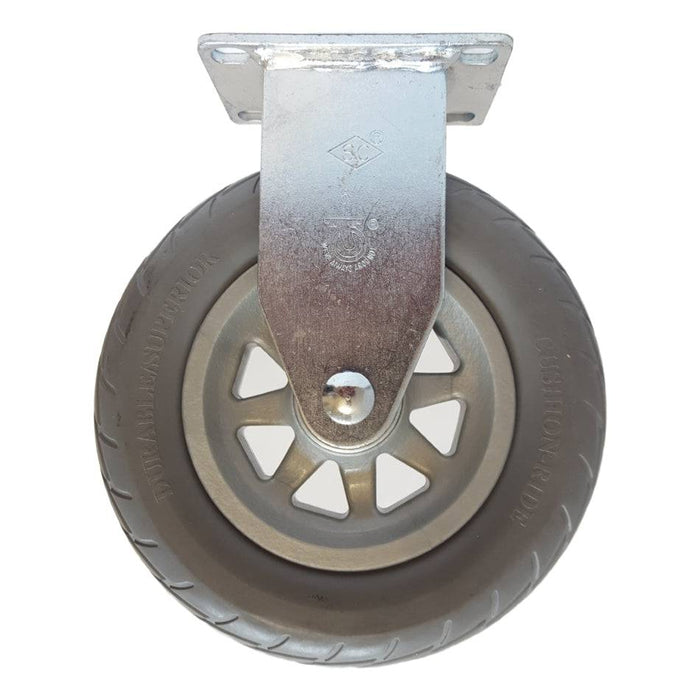

6" x 1-1/4" Cushion-Ride Wheel Rigid Caster - 300 lbs. capacity
6" x 1-1/4" Cushion-Ride Wheel Rigid Caster - 300 lbs. capacity
Product Overview
Cushion ride wheel is made from non-marking high quality rubber designed with a cushioned tread which rolls easily over small obstacles quietly. This cushion is also soft enough to protect floors such has hard wood and tile floors
Tread: High Quality Rubber, Non-Marking, Chemically Bonded To Core This caster is listed with wheel diameter 6", tread width 1-1/4", load capacity 300 Lbs., tread type High Quality Rubber, Non-Marking, Chemically Bonded To Core, and bearing type Ball Bearing.
Key Features
- Load Capacity: 300 Lbs.
- Wheel Diameter: 6"
- Tread Width: 1-1/4"
- Tread: High Quality Rubber, Non-Marking, Chemically Bonded To Core
- Bearing: Ball Bearing
- Mounting Plate: 2-3/8" x 3-5/8"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern
- Loads within the listed 300 Lbs rating
- Equipment using the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern
- Applications needing the listed High Quality Rubber, Non-Marking, Chemically Bonded To Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 300 Lbs, the equipment requires a wheel other than 6" diameter by 1-1/4" tread width, the mounting does not match the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 300 Lbs. |
| Wheel Diameter | 6" |
| Tread Width | 1-1/4" |
| Tread Type | High Quality Rubber, Non-Marking, Chemically Bonded To Core |
| Core Type | Polyolefin Core |
| Bearing Type | Ball Bearing |
| Wheel Color | Gray, Non-Marking |
| Overall Height | 7" |
| Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" slotted to 3" |
| Bolt Hole Diameter | 5/16" |
| Durometer | Shore A 75 (+/-5) |
| Temperature Range | -40° F to 160° F |
| Model / MPN | 76CR60GI4206YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -40° F to 160° F.
