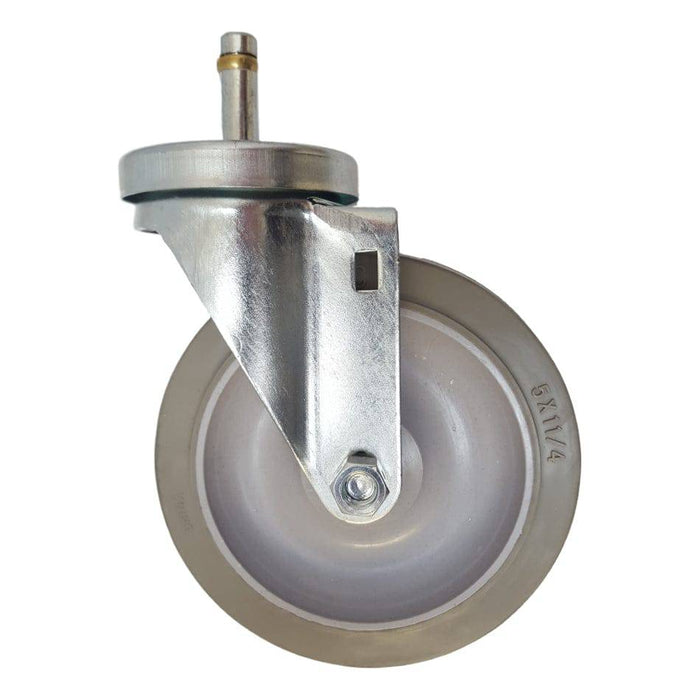

5" x 1-1/4" Nomadic Wheel Swivel Grip Ring Stem Caster (7/16") - 325 lbs. Cap.
5" x 1-1/4" Nomadic Wheel Swivel Grip Ring Stem Caster (7/16") - 325 lbs. Cap.
Product Overview
The Nomadic wheel is quiet rolling, provides a cushioned ride, and is impact-resistant, making it a great wheel for carts that carry sensitive cargo. With a flat tread, this wheel works well on hard floors, and the high-performance thermo-elastomer tread works great over bumps and thresholds.
Tread: High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core This caster is listed with wheel diameter 5", tread width 1-1/4", load capacity 325 Lbs., tread type High-Performance, Thermo-Elastomer, Non-Marking, Chemically Bonded To Core, and bearing type Ball Bearing.
Key Features
- Load Capacity: 325 Lbs.
- Wheel Diameter: 5"
- Tread Width: 1-1/4"
- Tread: High-Performance, Thermo-Elastomer, Non-Marking, Chemically Bonded To Core
- Bearing: Ball Bearing
- Stem: 7/16" x 1-3/8"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 7/16" x 1-3/8" stem or adapter
- Loads within the listed 325 Lbs rating
- Equipment using the listed 7/16" x 1-3/8" stem or adapter
- Applications needing the listed High-Performance, Thermo-Elastomer, Non-Marking, Chemically Bonded To Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 325 Lbs, the equipment requires a wheel other than 5" diameter by 1-1/4" tread width, the mounting does not match the listed 7/16" x 1-3/8" stem or adapter, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, stem size, and overall height match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 325 Lbs. |
| Wheel Diameter | 5" |
| Tread Width | 1-1/4" |
| Tread Type | High-Performance, Thermo-Elastomer, Non-Marking, Chemically Bonded To Core |
| Core Type | Polyolefin |
| Bearing Type | Ball Bearing |
| Wheel Color | Gray |
| Overall Height | 6" |
| Swivel Radius | 4" |
| Stem Size | 7/16" x 1-3/8" |
| Durometer | Shore A 65 (+/-5) |
| Temperature Range | -20° F to 180° F |
| Model / MPN | 21NM50GI4391YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 7/16" x 1-3/8" stem or adapter.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -20° F to 180° F.
