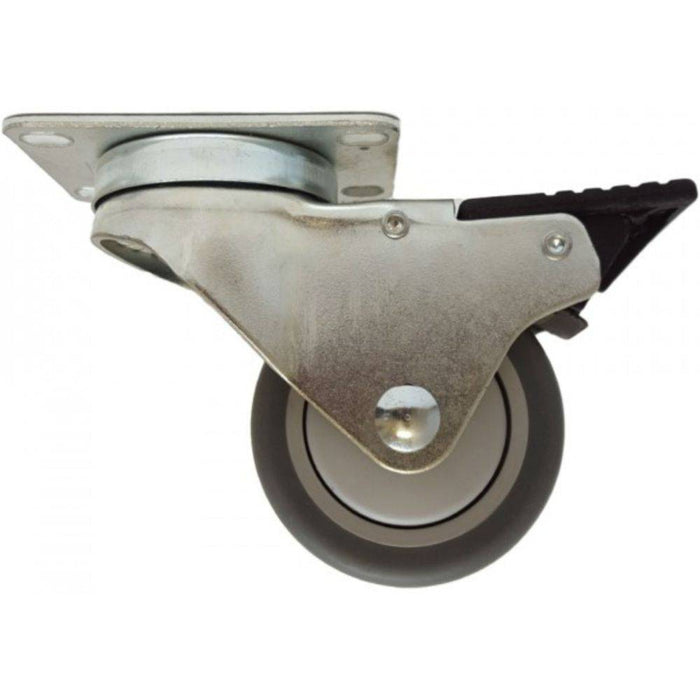

3" x 1-1/4" Thermo-Pro Wheel Swivel Caster W/ Total-Lock brake - 210 lbs. Cap.
3" x 1-1/4" Thermo-Pro Wheel Swivel Caster W/ Total-Lock brake - 210 lbs. Cap.
Product Overview
The thermo-pro wheel is made of highly resilient and versatile thermoplastic rubber providing shock absorption and floor protection. Also great for wash-down applications this wheel is ideal for warehouses, concrete, tile, and hardwood floors. This wheel is non-marking and allows for quiet rollability in a variety of different situations.
Tread: Non-Marking Thermoplastic Rubber This caster is listed with wheel diameter 3", tread width 1-1/4", load capacity 210 Lbs., tread type Non-Marking Thermoplastic Rubber, and bearing type Precision Ball Bearing W/ Full Thread Guards.
Key Features
- Load Capacity: 210 Lbs.
- Wheel Diameter: 3"
- Tread Width: 1-1/4"
- Tread: Non-Marking Thermoplastic Rubber
- Bearing: Precision Ball Bearing W/ Full Thread Guards
- Mounting Plate: 2-3/8" x 3-5/8"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern
- Loads within the listed 210 Lbs rating
- Equipment using the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern
- Applications needing the listed Non-Marking Thermoplastic Rubber wheel or tread
Not Ideal For
Not ideal when the load exceeds 210 Lbs, the equipment requires a wheel other than 3" diameter by 1-1/4" tread width, the mounting does not match the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern, or a different brake or lock style is required instead of Total Lock.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 210 Lbs. |
| Wheel Diameter | 3" |
| Tread Width | 1-1/4" |
| Tread Type | Non-Marking Thermoplastic Rubber |
| Core Type | Solid Polyolefin |
| Bearing Type | Precision Ball Bearing W/ Full Thread Guards |
| Overall Height | 5-1/8" |
| Swivel Radius | 4-7/8" |
| Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" slotted to 3" |
| Bolt Hole Diameter | 5/16" |
| Lock Type | Total Lock |
| Durometer | Shore A 75 (+/-5) |
| Temperature Range | -20° F to 180° F |
| Model / MPN | T3TP30GI4406YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Total Lock.
