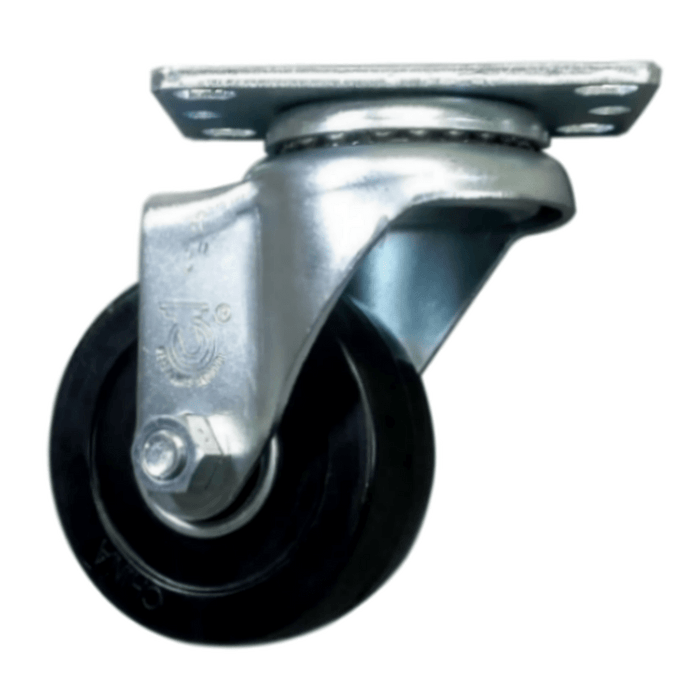

3" x 1-1/4" Soft Rubber Wheel Swivel Caster - 300 lbs. Capacity
3" x 1-1/4" Soft Rubber Wheel Swivel Caster - 300 lbs. Capacity
Product Overview
Soft rubber wheels are made of a hard rubber core with soft rubber tread allowing for shock absorption and long-lasting durability. These wheels are good for outdoor and indoor applications.
Tread: Solid Soft Rubber Tread Bonded To Core This caster is listed with wheel diameter 3", tread width 1-1/4", load capacity 300 Lbs., tread type Solid Soft Rubber Tread Bonded To Core, and bearing type Annular Ball Bearing.
Key Features
- Load Capacity: 300 Lbs.
- Wheel Diameter: 3"
- Tread Width: 1-1/4"
- Tread: Solid Soft Rubber Tread Bonded To Core
- Bearing: Annular Ball Bearing
- Mounting Plate: 2-3/8" x 3-5/8"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" to 3" bolt-hole pattern
- Loads within the listed 300 Lbs rating
- Equipment using the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" to 3" bolt-hole pattern
- Applications needing the listed Solid Soft Rubber Tread Bonded To Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 300 Lbs, the equipment requires a wheel other than 3" diameter by 1-1/4" tread width, the mounting does not match the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" to 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 300 Lbs. |
| Wheel Diameter | 3" |
| Tread Width | 1-1/4" |
| Tread Type | Solid Soft Rubber Tread Bonded To Core |
| Core Type | Hard Rubber |
| Bearing Type | Annular Ball Bearing |
| Wheel Color | Black |
| Overall Height | 4-1/8" |
| Swivel Radius | 3" |
| Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" to 3" |
| Bolt Hole Diameter | 5/16" |
| Durometer | Shore A 80 (+/-5) |
| Temperature Range | -40° F to 180° F |
| Model / MPN | 75SR30GB4206YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" to 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -40° F to 180° F.
