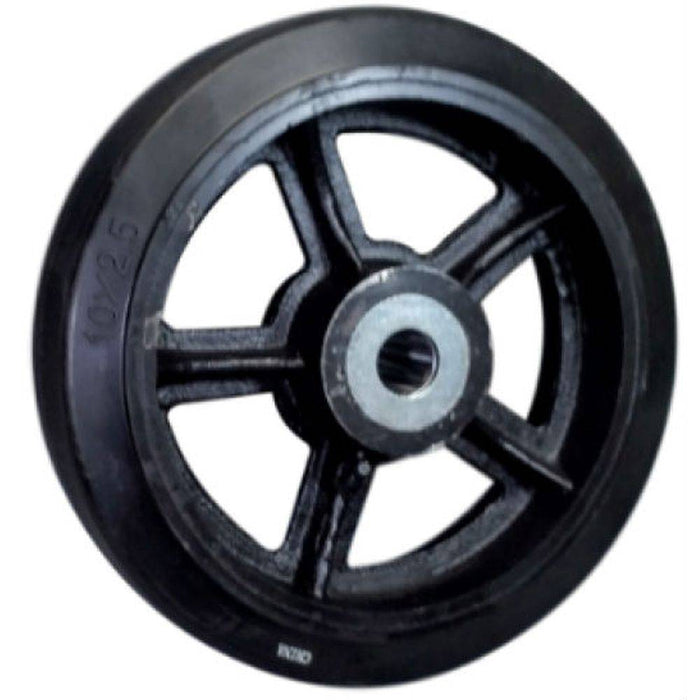

10" x 2-1/2" Mold-On Rubber Cast Iron Wheel - 1000 lbs. capacity
10" x 2-1/2" Mold-On Rubber Cast Iron Wheel - 1000 lbs. capacity
Product Overview
The mold-on rubber cast wheel is an economic wheel, providing cushion while rolling on a strong cast iron core. This wheel performs best in dry applications.
Tread: Rubber, Vulcanized To Core This replacement wheel is listed with wheel diameter 10", tread width 2-1/2", load capacity 1,000 lbs., tread type Rubber, Vulcanized To Core, and bearing type Roller Bearing. Before ordering, verify the listed wheel dimensions, load capacity, bore or bearing, hub length, material, temperature range, and any mounting requirements against the exact caster assembly, axle, equipment clearance, and operating environment being fitted.
Key Features
- Load Capacity: 1,000 lbs.
- Wheel Diameter: 10"
- Tread Width: 2-1/2"
- Tread: Rubber, Vulcanized To Core
- Bearing: Roller Bearing
- Temperature Range: -40° F to 180° F
Ideal For
Choose this product if you need:
- A replacement wheel matching the listed 10" diameter and 2-1/2" tread width
- Loads within the listed 1,000 lbs rating
- Applications matching the listed 10" x 2-1/2" wheel dimensions
- Applications needing the listed Rubber, Vulcanized To Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 1,000 lbs, the equipment requires a wheel other than 10" diameter by 2-1/2" tread width, the axle or bearing requirement does not match Roller Bearing, or the operating temperature is outside -40° F to 180° F.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, temperature range, and SKU option match the wheel required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 1,000 lbs. |
| Wheel Diameter | 10" |
| Tread Width | 2-1/2" |
| Tread Type | Rubber, Vulcanized To Core |
| Core Type | Cast Iron Core |
| Axle / Bore Diameter | -3/4" -1" -1-1/4" |
| Hub Length | 3" |
| Wheel Color | Black |
| Durometer | Shore A 80 (+/-5) |
| Temperature Range | -40° F to 180° F |
Available SKU Options
Compare the configuration details below and select the SKU that matches your equipment.
| SKU | Configuration Details |
| RS10KB06 | Bearing Type: 3/4" ID Roller Bearing |
| RS10KB23 | Bearing Type: 1" ID Roller Bearing |
| RS10KB25 | Bearing Type: 1-1/4" ID Roller Bearing |
Frequently Asked Questions
What is this product used for?
Use it when you need a replacement wheel matching the listed 10" diameter and 2-1/2" tread width.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -40° F to 180° F.
